JMA Products Accesories

BOX FOR SORTING AND STORING KEYS:

• Made in high-quality laminated plate.

• 40 mm. thick wooden top of guaranteed strength that provides

the furniture with a special finish.

• Available in 6 drawers that lock simultaneously, designed and prepared for heavy loads, sliding on high-quality bearings.

• The top auxiliary drawer has a height of 50 mm.

• The other 5 drawers, with a free height of 100 mm. each, allow the key boxes to be sorted and stored in compartments designed

for this purpose that allow these to be extracted easily. (The boxes will be sorted by placing the reference side upwards).

Mod. 1: each drawer can contain 80 boxes (of 50 units). Total 4000

keys per drawer. Total capacity of box: 4000 units in 6 drawers, 24000 keys.

Width / height / depth: 1030 / 940 / 620 mm.

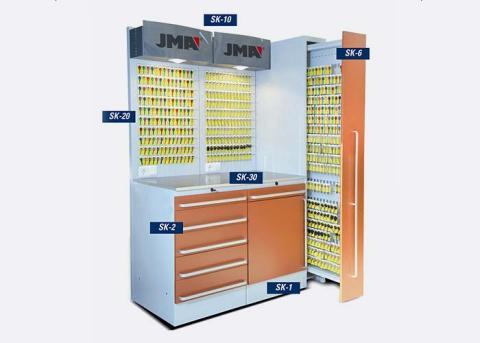

The most practical, attractive and functional way of displaying all your products.

KEYSERVICE gives you the option of combining the different modules

as you wish.

AESTHTICS AND DESIGN > FUNCTIONALITY > CAPACITY > STURDINESS

Mod. SK-1 – Basic cabinet. 60 mm high drawer.

Dimensions in mm :

height 900/ depth 630/ width 600

Hinge mounted door, two adjustable position shelves.

Stainless steel handles, length 556 mm.

Rolled steel sheet cabinet, light grey colour combined with boiler colour

polylaminated fronts.

Mod. SK-2 – Cabinet with drawers. 60 mm high drawer.

Dimensions in mm:

height 900/ depth 630/ width 600

Capacity for 14,000 Keys

Four 100 mm high drawers.

Anodised aluminium handles, length 556 mm.

Rolled steel sheet cabinet, light grey colour combined with boiler colour

polylaminated fronts.

Safety opening (if there is a drawer open, it is not possible to open another).

Anti-overturn system.

Mod. SK-6 – Removable display.

Dimmensions in mm:

height 2000/ depth 665/ width 250

Capacity for 576 Hooks/ Capacity for 16.250 keys

Double central perforated sheet for hooks.

Anodised aluminium handle, length 1080 mm

Lower support wheel.

Rolled steel sheet cabinet, light grey colour combined with boiler colour

polylaminated fronts.

Mod. SK-10 – Lamp module.

Curved frontal in PVC incorporating lightning plate.

Mod. SK-20 – Key display panel.

Painted, perforated metal back.

Dimensions in mm:

height 2000/ depth 40/ width 600

Capacity for 140 hooks

Capacity for 3.500 keys

Mod. SK-30 – Top Modèle

Dimensions in mm:

Height 30/ depth 600/ width 600
